Production of technical drawing for all manner of structural and mechanical elements of marine vessels is a core part of what we do at Southerly Designs.
In fact its built into almost every service we offer.
Regardless of the size or origin of the project if you need drawings we can help.
Have your own ideas or existing vessels without drawings?
Undocumented modifications that need to be drawn up for approval?
Large projects where you simply need some drafting support?

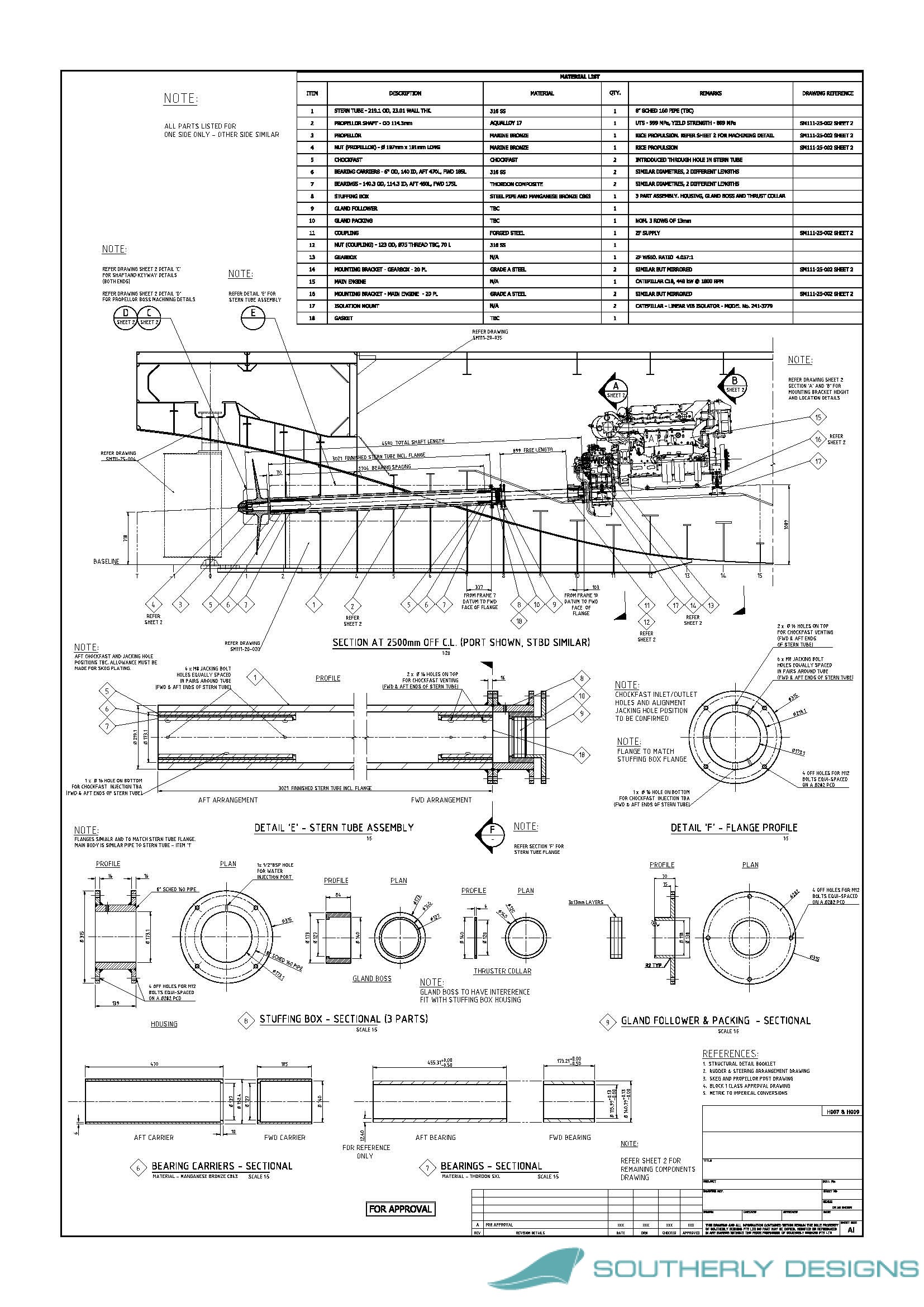

Southerly Designs can create detailed drawings from sketches, photos, and on-site measurements for documentation, construction, and survey approval.
We utilise a range of modern 2D and 3D drafting tools that we can utilise to provide the required content.
Our core business is the design and engineering of class leading high speed commercial vessels.
Since 1997 Southerly Designs has been at the forefront of high speed aluminium & FRP composite vessel design.
Drawing on over 40 years of experience in designing, constructing and operating fast commercial vessels, our professional and dedicated team has forged an enviable reputation for producing robust vessels that are practical, handle well even in extreme conditions, are fuel efficient and offer comfort without sacrificing performance.
